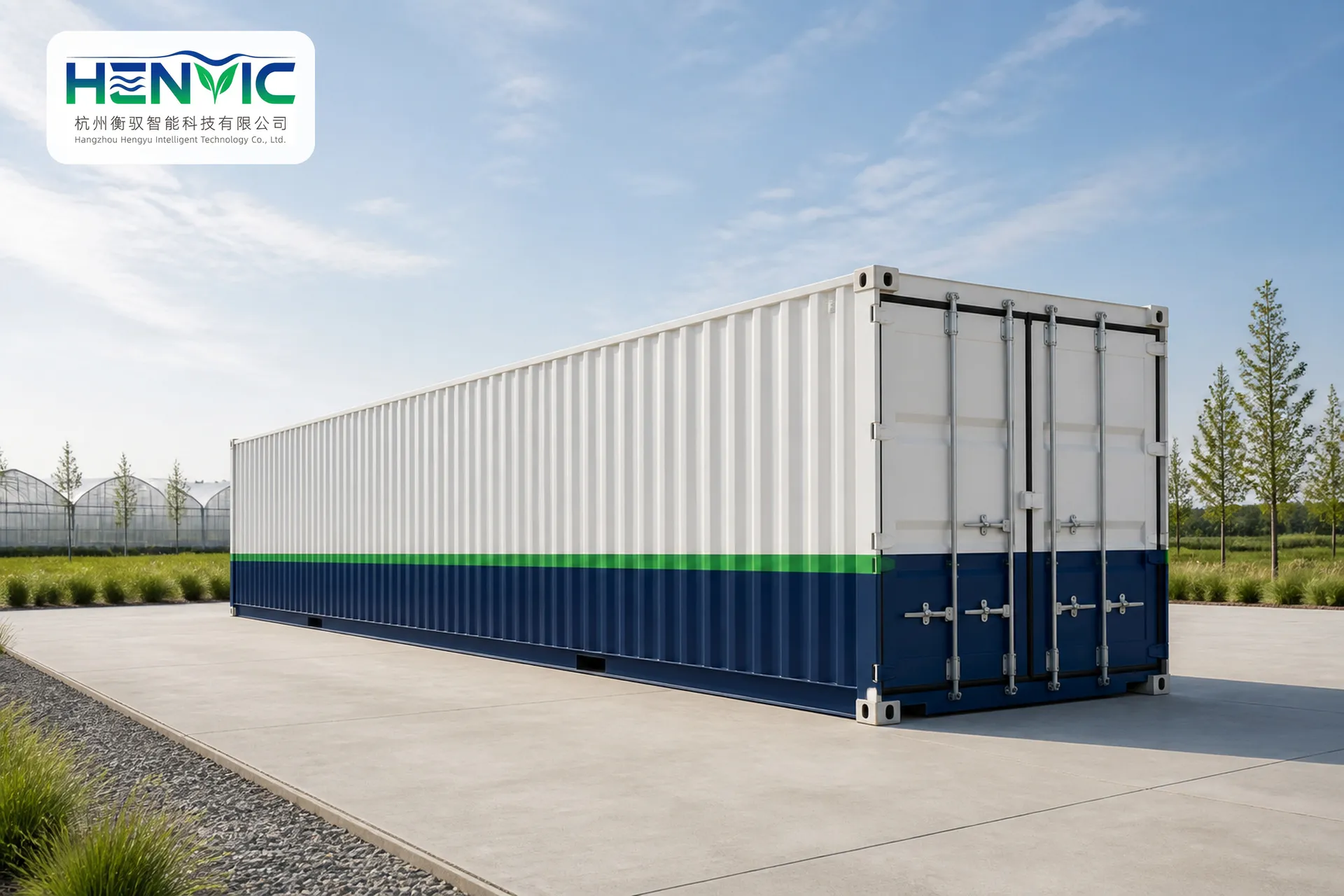

HVC-M05 Shiitake Mushroom Year-Round Cultivation Container
Product illustration: images/mushroom/HVC-M05.jpg (Smart Environmental Control Cabinet)
HVC-M05 Shiitake Mushroom Year-Round Cultivation Container
Product illustration: images/mushroom/HVC-M05.jpg (Smart Environmental Control Cabinet)
I. Product Overview
Oyster mushrooms are highly sensitive to CO₂ concentrations; elevated CO₂ levels can directly cause excessive stem elongation or abnormal cap formation. The HVC-M05 system is designed around the principle of "strong ventilation and precise CO₂ control," complemented by complementary cooling, dehumidification, and humidification adjustments, enabling stable year-round production of oyster mushrooms.
II. Core Competencies
● CO₂ Fine-Tuning: High-precision CO₂ probe integrates with fresh air supply and indoor air circulation systems, achieving a control accuracy of ±100 ppm.
● Dual mode (dehumidification and humidification): A single unit provides both humidification and dehumidification, offering fast humidity response and minimal fluctuation.
● Drainage and Contamination Prevention Design: Linear ground drainage channels, combined with washable flooring surfaces, facilitate disinfection between batches.
● Environmental Control Cabinet Visualization: Real-time curve display via touchscreen; supports one-click formula switching.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Effective cultivation area | 50–60 m² |
Temperature control range | 12–22 ℃（±0.8 ℃） |
relative humidity | 85%–95% RH |
CO₂ concentration | 500–1200 ppm（±100 ppm） |
rate of ventilation | 8–15 times per hour |
installed power | 10–14 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration

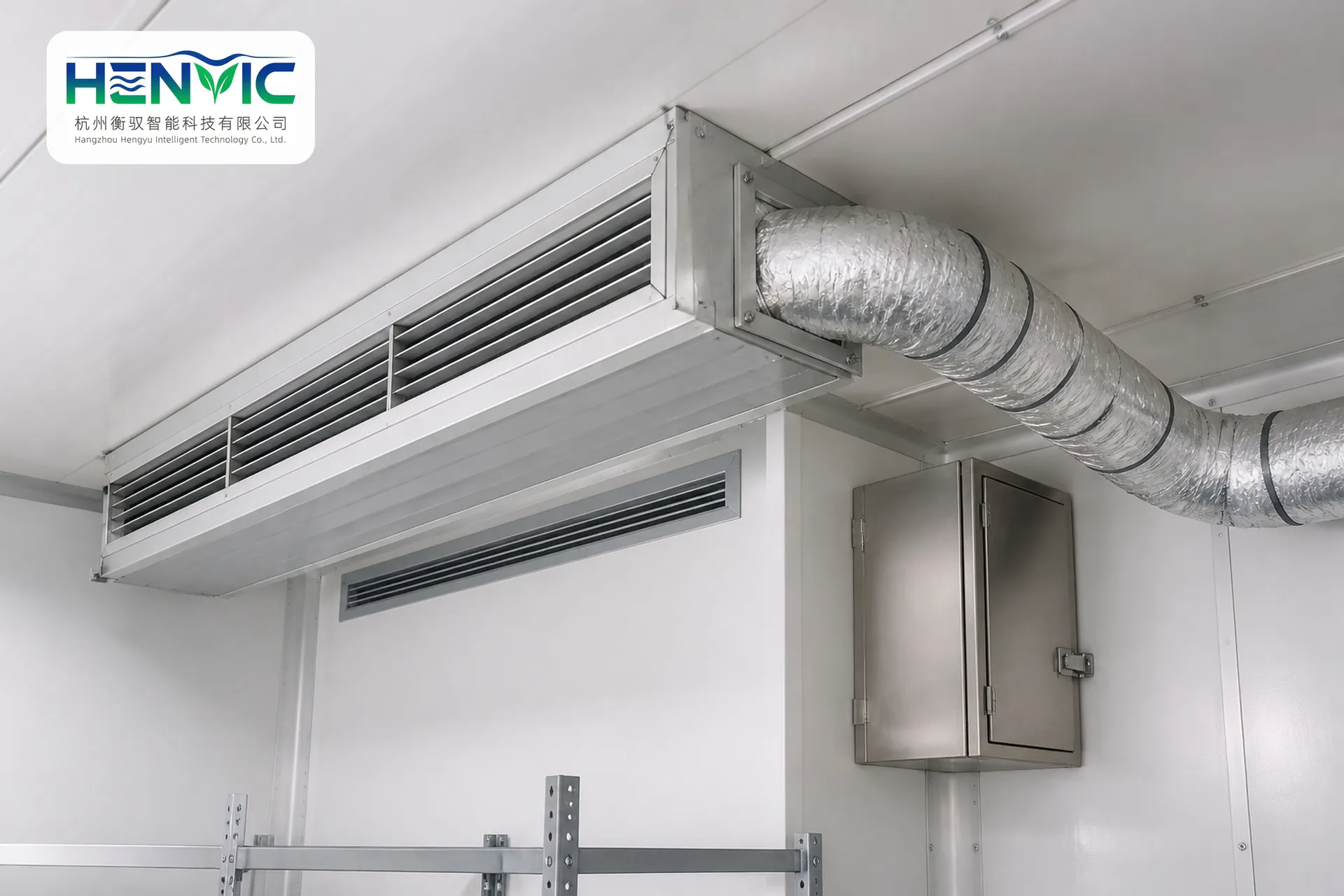

Integrated variable-frequency cooling/dehumidification unit; fresh air and indoor air circulation fans; CO₂ sensor and adjustment module; ultrasonic humidification system; linear drainage channels and washable flooring; stainless steel shelving units; PLC touchscreen control cabinet.
V. Applicable Varieties
Agaricus bisporus, Auricularia auricula, Juglans cyriaca mushroom, Auricularia auricula–polytrichoides, and other mushroom species that require good ventilation.
VI.适用场景
Large-scale, cost-effective year-round mushroom cultivation; a fresh mushroom supply base for suburban areas; agricultural cooperatives.
VII. Delivery and Installation
The entire system shall be delivered; commissioning shall be completed within 3 working days after on-site power and water supply connection; CO₂ process parameters shall be provided.
VIII. After-Sales Service
12-month overall warranty; annual sensor calibration, consumable replacement, and remote operational maintenance support.
