Matsutake Mushroom Cultivation Container Model：HVC-M3E

1. Product Overview

Matsutake still cannot be cultivated at low cost by conventional means; its value stems from its strict dependence on the cool, humid microclimate of native forest floors. This model rebuilds that microclimate inside the container using a wide-range low-temperature unit, zoned air distribution and tunable spectrum, providing a controllable platform for bio-mimetic cultivation and fundamental research.

 2. Key Advantages

• Wide-range low-temperature capability for long-term stable operation between 12 and 20 degC

• Multi-point sensor-driven air distribution holding internal variance within 1.5 degC

• Tunable spectrum balancing mycelial growth against fruiting-body morphogenesis

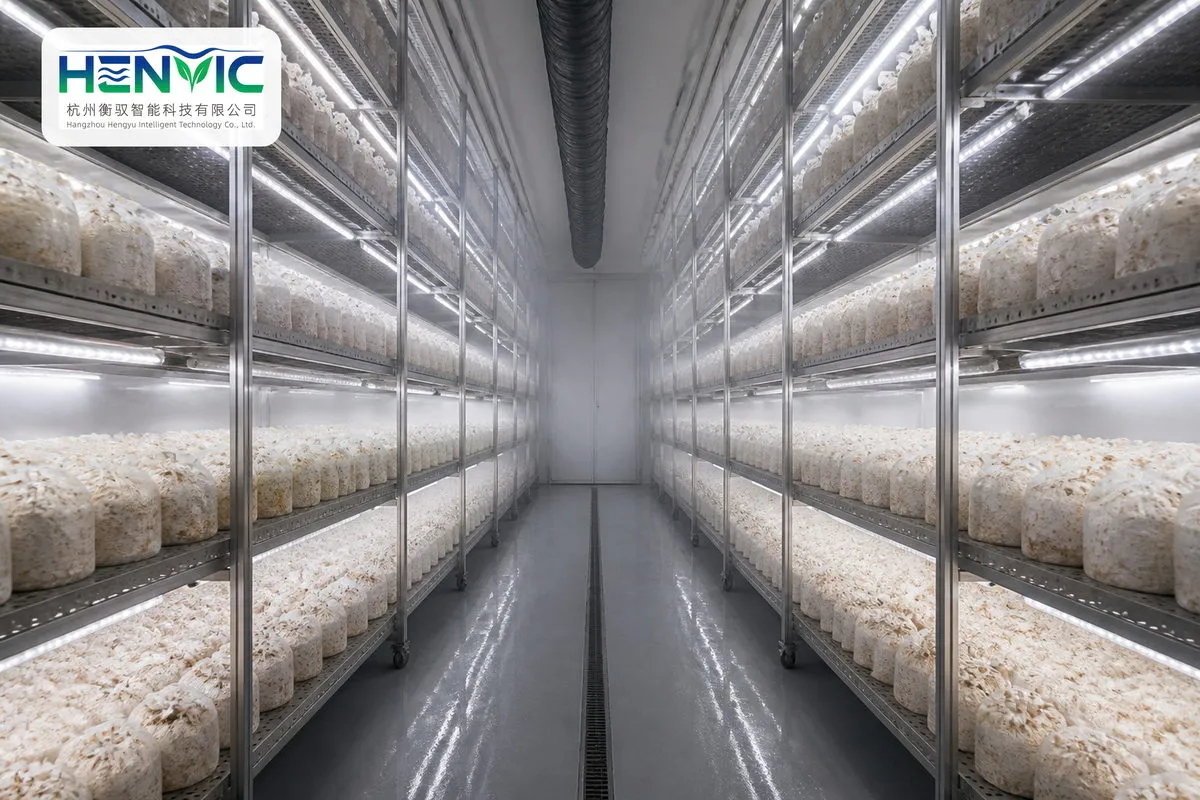

• Twin-bank rack layout with a central aisle for short harvesting routes and high labour efficiency

3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-M3E
外形尺寸 / Dimensions	12000 × 2438 × 2896 mm（40 尺标准箱）  /  12000 x 2438 x 2896 mm (40 ft ISO container)
有效栽培面积 / Effective cultivation area	50–65 m²  /  50-65 m2
层架配置 / Rack configuration	4–5 层不锈钢出菇架，配自动巡检接口  /  4-5 tier stainless racks with automatic inspection interface
温度控制范围 / Temperature range	12-20 ℃ (±0.5 ℃)  /  12-20 degC (+/-0.5 degC)
相对湿度 / Relative humidity	80-92% RH
CO₂ 浓度 / CO₂ concentration	700-1300 ppm
光照 / Lighting	0-400 lux（可调 / adjustable）
栽培周期 / Cultivation cycle	90–150 天（长周期仿生）  /  90-150 days (long-cycle simulation)
装机功率 / Installed power	14–18 kW  /  14-18 kW
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.30 W/(m²·K)  /  <= 0.30 W/(m2.K)
控制系统 / Control system	全自动控制 + 云端数据平台 + AI 配方自学习 + 手机 APP  /  Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app
主栽品种 / Primary species	松茸（Tricholoma matsutake）  /  Matsutake Mushroom (Tricholoma matsutake)



 4. System Configuration

Standard configuration: Low-temperature inverter unit, central-aisle twin-bank racks, ultrasonic fogging humidifier, programmable LED spectrum bars, multi-point environmental sensor network, fresh-air heat-exchange module and PLC control system.

Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 4-5 tier stainless racks with automatic inspection interface; control: Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app.

5. Suitable Species

Primary species: Matsutake Mushroom (Tricholoma matsutake). Cultivation method: bio-mimetic substrate with zoned temperature control. This model is positioned as an R&D and pilot platform; production economics should be assessed against the specific strain and substrate programme.

 6. Application Scenarios

R&D and pilot-scale facilities for high-value rare mushrooms, ecological agriculture demonstration parks, and supporting units for under-forest bio-mimetic cultivation. This is the Smart Flagship configuration; Unattended operation with full parameter traceability; suits multi-site remote management.

7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 96-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 5 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

 8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
